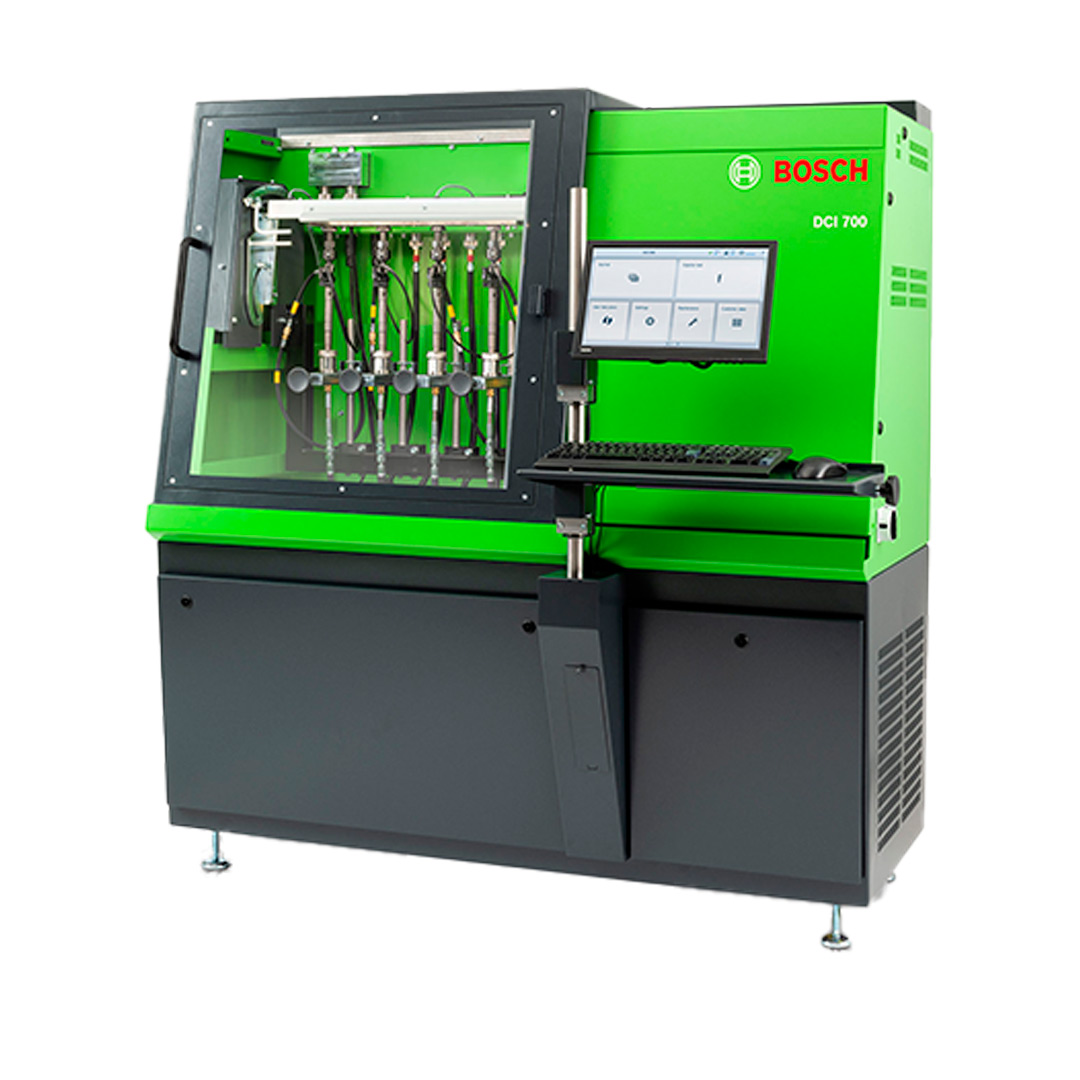

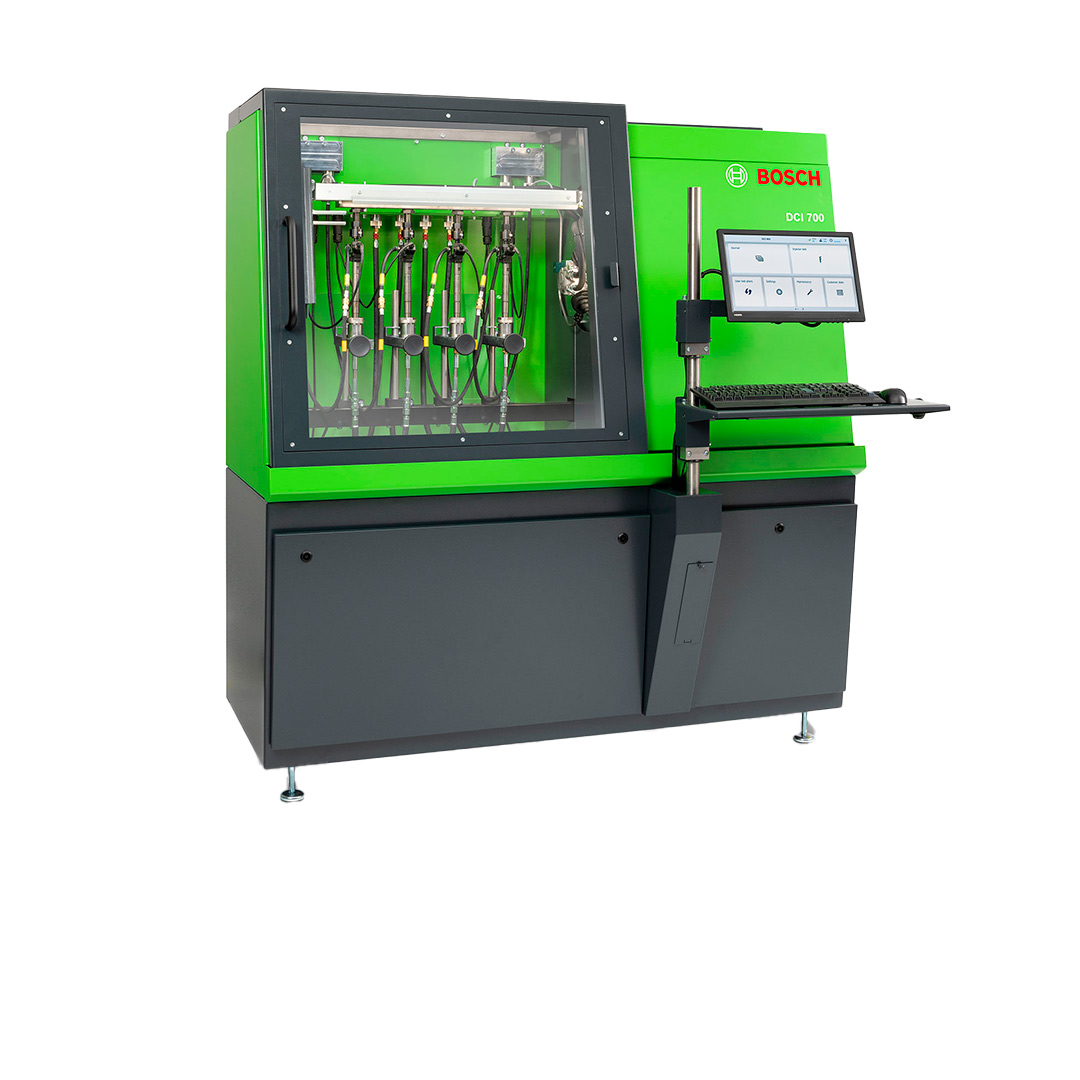

DCI 700 – common-rail Injector test bench
The Bosch DCI 700 diesel test bench is designed with the future in mind with its new measurement system that has the ability to test the latest common rail injector technologies for all car and commercial vehicle systems, including those with Needle Closing Control (NCC) and Valve Closing Control (VCC).
The DCI 700 offers you and your workshop super-efficient testing with its short mounting and testing times, which enable four common rail injectors to be tested in less than 15 minutes.
Designed with a tapered base, it allows the operator to stand closer to the bench without having to bend to mount the injectors. This is one of the many ergonomic features that make the DCI 700 so easy-to-use.
Description
More Information
Video
Features and Benefits
- Ergonomic and intuitive design: For easy operation
- Short mounting and testing times: For supreme efficiency
- Test all cars and commercial vehicles: For versatility
- New technology: For futureproofing the equipment and your requirements
- Adjustable screen: Each operator can set height and angle of the screen individually
- Faster, more accurate test measuring: For more precise outcomes in terms of adjustments to injectors
- Online updates: Keeping you up-to-date with current test specifications
- Bright, dazzle-free workspace lighting: Giving great visibility of leaks whilst also being easy on the operator’s eyes
- Clear and accurate results: Demonstrate your expertise and service level to customers with a printed test report (printer optional)
- No need for high-pressure hoses: To reduce service costs
Technical Data
| Test pressure | 30 MPa to 250 MPa |
Max. Rail pressure | 260 MPa |
Mechanical pressure limitation | 270 MPa |
Rail pressure control by | 2 Pressure control valves (DRV) on Rail and MeUN in CP4 |
Automatic Injector back flow pressure control | 50 kPa to 1200 kPa |
Used HD pump for test pressure generation | CP4.2 (CP4-25) |
Capacity of test oil tank: at the max. marking at the max. marking | 45 l 35 l |
Tightening torques of high-pressure connections, locking screws | 25 Nm |
Dimensions with monitor and keyboard tray (W x H x D ) | 1700 x 1736 x 1082 mm |
Dimensions without monitor and w/o keyboard tray (W / H / D ) | 1616 x 1736 x 786 mm |
Weight without test oil | 590 kg |
| Operating System | Windows 10 IoT Enterprise 2019 LTSC, 64 Bit |
Software and data base updates | via DDM (Diagnostic Download Manager, Internet connection necessary) |
AC Voltage supply | 380 VAC to 460 VAC |
Rated current | 15 A |
Fuse | 16 A |
Phases | 3 P/PE |
Input frequency | 50 Hz/60 Hz |
Protection class entire test bench | IP 20 |
Air pressure, corresponds to a height of | 700 hPa to 1060 hPa ≤ 2200m |
Workplace-related emission sound pressure level according to DIN EN ISO 11201 | < 69.2 dB(A) +/- 2.5 dB |
Operating temperature | 5 °C to 40 °C |
Max. permissible relative humidity | ≤90 % (at 25 °C and 24 hours duration) |
Storage temperature | -20 °C to 60 °C |
Scope of Delivery
- Injector test bench DCI 700
- High pressure pump CP4.2
- CRI accessory kit for solenoid and piezo CRIs
- 15.6'' LCD Touchscreen
- Tray for keyboard
- Working area lightning
- Electric CRI connection lead (2, 3, 4 pin)
Special Accessories
CRIN Bosch Injectors | 1 687 010 607 |
CRIN 4.2 Bosch Injectors | 1 687 010 608 |
CRIN 3rd Party | 1 687 010 609 |
CRIN Expert-Kit | 1 687 010 611 |
Adapters for CRIN injectors |
